Biliran Island Power Proposal

Sometimes it is good to do an article that is practical – applied – rather than opinionated or political. This proposal pertains to Biliran Island but may be relevant elsewhere in the Philippines, too. It started as a bit of curiosity and evolved into a project.

I suppose it is a vanity blog. You can skip to the bottom if your mind starts to go numb.  Look for the “Big Question“.

Personally, I learned a lot in scoping out this project.

The Power Scene on Biliran Island

Biliran Island is essentially one giant volcano that has pushed up six mountains which act as rain gatherers, thrusting cool air up into the warm, wet tropical air and sucking the moisture down as generous rainfall. If you look at  Map 1, you can see the deep channels on the island carved out by water crashing down the mountains.

Map 1 500

Map 1

Most of this water rushes to the sea, stopping along the way to irrigate terraced and coastal rice fields. Some of it is fed off into civic water pipes. There is some friction between the municipalities and the rice-growers about water usage, especially during the dry months (April, May). But most of the year there is a lot of rainfall at higher elevations and the rivers run year-round. Plenty of water for all.

Waterfalls on the island are promoted as tourist attractions but don’t get a lot of non-local visitors. There is not much infrastructure here in the way of hotels, no airport, and it’s a long drive from the big cities of Tacloban and Ormoc, Leyte.

Biliran currently imports electricity from generators on the adjacent large island of Leyte. The contract expires later this month and the electrical cooperative (BILECO) is negotiating with another supplier in Bataan to obtain a steadier supply of electricity. Costs now are very erratic. BILECO imposes brownouts on its population, usually one or two Saturday’s a month, to manage overall expense and ease demand on suppliers.

Map 2 500

Map 2

I doubt that there is enough wind for a wind farm on Biliran. There is plenty of sunshine, but solar is not the most cost-effective electrical generator. Waves are ample, but I don’t know of any commercially successful wave generators. A geothermal generator pegged to produce up to 150 megawatts of power failed in 2011 when the developer’s main business in Iceland collapsed. Geothermal may have promise.

Biliran is essentially one large volcano, and hot springs are a popular attraction on the east side of the island near the town of Caibiran, and in the northern sectors. It is recorded, somewhat speculatively, that there have been three volcanic eruptions over the past 350 years, the last in 1939 which caused a rockslide and spread a small amount of ash over Caibiran.

And then there is hydro. Water rushing downhill.

What a perfect place for water rushing downhill.

It crashes down 1,000 meters to the sea every day. Down very steep mountainsides. The roar is a consistent year-round background noise at our home. Why are we not tapping that power? This could be done by multiple, small-scale generators across the island, or by one large power plant.

I decided to explore the merits of a large power plant.

The Lay of the Land

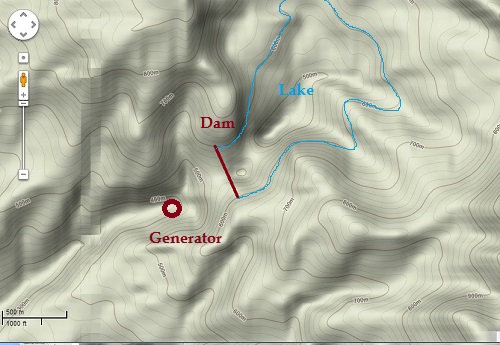

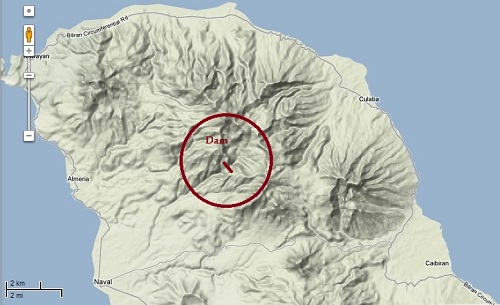

Map 2 shows the proposed location of a dam at the steep feeder outlet from a large, natural bowl at the top of the mountains. Map 3 shows the topography at the dam location. For our model, we are considering a dam approximately 500 meters long at the top (tapering to 300 meters at the bottom). It will be 90 meters tall, made of cement for strength and to prevent erosion during the heavy rains. Pertinent measurements:

  • The top of the dam will be at the 600 meter elevation line.
    Map 3 500

    Map 3

  • The pipe-outlet at the bottom of the dam will be at the 510 meter mark.
  • The generators will be at 380 meters elevation,
  • The lake water (at the 575 meter mark) will be approximately 1.5 kilometers long and 0.7 kilometers wide. Water will be approximately 65 meters deep.

Spillway gates at various elevation will control runoff to manage water depth and assure consistent, year-round downstream flows.

The Amount of Electricity

I discovered that calculating electricity generation is a fairly simple formula. Power = efficiency of turbine times water density times flow in cubic meters per second times the acceleration of gravity times the distance traveled. For the proposed plant, the following numbers benchmark our feasibility study:

Power = .60 x (998 x 50 x 9.81 x 130)/1,000,000 = 38 megawatts

Given that the weight of water and acceleration of gravity are reasonably constant, the main variables are:

  • Amount of water
  • Length of fall
  • Turbine efficiency

I’ve started with an estimate of the amount of water than can be captured in the proposed hydro-plant, and a fairly precise measure of distance (130 meters, dropping from 510 to 380 meters). Turbine efficiency of 60% is fairly standard.

Biliran Island currently consumes 6 to 7 megawatts of electricity. Biliran would become an electricity exporter to a very hungry Philippines.

The Pros and the Cons

Are you nuts, Joe? Building a big dam on an ACTIVE volcano? The water from a collapsed dam would splatter your big town of Naval all the way to Cebu.

  • “Well, yeah, I am serious in at least exploring the matter. And maybe we can have a sideline business of providing both hot and cold running water from our volcanic waters.”

Here are the Pros and Cons, with a response attached to each Con. Then I wrap it up with a Todo list and a reasonable Alternative.

Pros

  • Ample, clean, steady supply of electricity.
  • The lake land area is substantially vacant; little dislocation of homes would occur.
  • Revenue from exported electricity.
  • Managed supply of water to agribusiness and municipalities.
  • Protection against flash floods during major rainstorms.
  • Substantial number of new jobs.
  • New tourism attraction (the dam and lake)

Cons

  • Unstable land from earthquakes and volcanic eruption; possibility of collapse. (Build a large deflection wall downstream to protect Naval; risk is worthwhile)
  • Impact on ecosystem; loss of waterfalls and flooding of forested area. (A new ecosystem would be created; hydroelectric power is one of the most environmental friendly forms of electricity generation.)
  • Difficult and costly construction. (It’s no more difficult than any dam. Fund it with a long term bond. Given the high price of alternative sources, this project should be economic.)

ToDo

  • Determine what other consideration has been given to hydroelectric power in Biliran, and what the findings were. Determine if new technology offsets negative findings.
  • A geological probing of the composition of the earth in the dam area is needed, along with a probability and magnitude assessment of earth shocks.
  • Assess rainfall runoff estimates and amounts likely to be lost via porus earth. Is significant water capture assured?
  • What volume of water will be piped into generators.
  • What are the financials for construction, generators, transmission lines, and operating costs; what are the sources of funds for construction; what is revenue likely to be?

Alernative

220px-WaterTurbineExt

Small “Francis” generator

  • Install a network of small, river driven generators throughout Biliran Island. Avoid the dam, collect the energy. Actually, I suspect, if “big dam” soil analysis and rainfall analysis were done, this might rise as the most attractive approach. The technology in this area is well-developed.
  • Geothermal. Get another investor to tap the hot springs, perhaps in a smaller scale than the project that fell through.

Big Question

Why is there no concerted electrical “self-sufficiency” effort being made on Biliran Island? Does the Provincial government only think of infrastructure in terms of roads (they are tearing up and rebuilding several kilometers of perfectly good road on the island right now)? Is the “cooperative” management a weak and non-inventive form of utility oversight? Might a goal of energy self-sufficiency by 2020 help focus the mind?

Personal Contingency Note

  • Buy a boat to get off this volcano mighty fine quick if it decides to erupt.
