Philippines electricity tariff decoded

By Chemrock

The Philippines’ electricity cost is one of the highest in the world. Is it really? And if so, what accounts for it?

The easiest way out is to put the blame squarely on Cory Aquino for mothballing the Bataan Nuclear project as the underlying reason for costly electricity today. Die-hard Marcos supporters still believe that the nuclear plant would have been the panacea for the Philippines’ energy crisis of the 1990s and the country would have cheap electricity forever and after. Cory is thus to be blamed for the high electricity tariff today.

The reality is, unlike many other countries, there is no subsidy in the Philippines electricity rates. Take away such subsidies, the comparison would have been more in Philippines’ favor, although it is nevertheless still quite expensive. To explain the high price, we need to unbundle the electricity bill.

I came across a study by Roberto S. Verzola, Jose D. Logarta Jr. (Viking) and Pedro H. Maniego, Jr. who compiled a cost composition of the electricity tariff in 2017 that provides some good insight.

The generation cost:

This is the cost of electricity the utilities procured from the generators. The major part of this is the fuel cost, be it coal or oil. Could our generation cost have been lower? The predicament lies in the coal plants.

Coal plants contribute roughly 43% of today’s power generation. Coal fired plants are considered the cheapest source for baseload requirements. However, this is fallacious because externality costs, life-cycle costs, as well as fuel and foreign exchange volatility risks have not been factored in. Purchase contracts more or less guarantee full cost recovery. With such risks taken out of their hands, coal plant operator profitability is assured.

Although most of the coal is imported, there is no need for coal plants to hedge themselves for fuel cost and currency fluctuations when all costs are passed on to consumers. There is also no need to invest in innovation or technology. The consequence is plant and management inefficiency. This translates into higher generation costs.

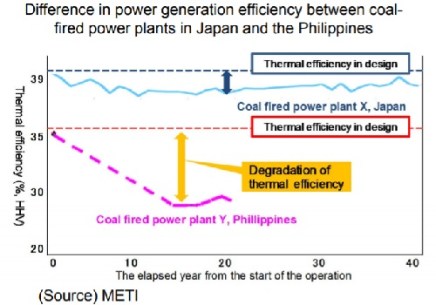

This chart compares Filipino coal plant efficiency levels with those of their Japanese counterparts. The difference is stunning. There were plans by JICA to assist in technology transfer, management technical training to improve operations, and funding to increase the efficiencies of these coal plants. Not quite sure if anything concrete came out of it.

The coal plant business model is a sure profit game when rates are based on cost-plus ROI. Coal plant investors will therefore protect their territory by all means. All the oligarchs involved in power generation are in coal except for the Lopez-owned Energy Devt Corp which operates natural gas plants. This backgrounder explains why Gina Lopez, ex-secretary of Natural Resource & Environment, was tough on coal mines, and why a strong coal lobby in Congress refused to confirm her appointment.

Today, the coal lobby is out to suppress the low-carbon path in the country’s energy plan.

Transmission cost:

This represents the cost of delivering the electricity from generation plants to distributors (micro-grids). It is the cost of operating and maintaining the national grid. Transmission assets (the transformers, sub-stations, high tension towers, cables, poles, etc) are owned by a government agency National Transmission Corp and operated by a concessionaire NGC (National Grid Corp). NGC is a private enterprise. Henry Sy is one of the major shareholders and State Grid Corp of China owns 40%. SGCC is a Chinese govt company. The Congress Minority Floor Leader Danilo Suarez has claimed that NGC concession disadvantaged consumers in that transmission rate was computed on operational cost plus cost recovery of old assets. His call for a Congress inquiry has fallen on deaf ears. If Suarez is right, then the transmission cost is high due to double recovery of old assets. It is hard to tell in the absence of data, but it is obvious to the naked eye that most of the transmission infrastructure is indeed decaying.

System loss:

This is an unavoidable cost in all electricity systems. When electricity flows through a conductor where there is resistance, power loss is inevitable. Technology used and aged assets impact the loss rate. The power loss is in the form of heat. The cost of systems loss is charged to consumers. This is reflected in the difference between actual meter reading and the load the consumer is charged with.

A World Bank report shows the Philippines has one of the highest average system losses in East Asia at 9.4 % in 2014, as compared to countries like Korea with 3.3 % and Singapore with 2.0 %.

In 2017, the ERC (Electricity Regulatory Commission) capped the rate for systems loss charged by independent DU (distribution utilities). It is to be gradually reduced from 8.5% to 5.5% by 2021, and co-operatives to about 12% by 2022.

Distribution cost:

At 26.34 % this portion seems very high to me. The distributor has 3 basic functions . First function is essentially a financial one. The DUs procure electricity from power generators on behalf of their customers the end consumers. Second is metering. Third is the last mile delivery of electricity to end consumers. It can be viewed as ownership, operation and maintenance of the micro-grid within their franchised territory.  It will be interesting to parse this figure further to the detailed cost. I suspect the gross margin is high and there is inefficiency due to no economies of scale. The ERC does not regulate what distributors charge.

The basis of the rate computation is absolutely complicated. It is a fertile ground for fiddling with figures that hide behind chunks of data beyond the technical competence of those outside the industry to comprehend.

In 2010 National Association of Electricity Consumers for Reforms (Nasecore)
claimed that Meralco, the country’s largest DU, overcharged customers by Php 14.2B over a span of 5-1/2 years. This issue remains a current hot topic of debate.

Subsidies:

No idea what this is.

Government taxes:

The amount of govt taxes seems pretty high. But what exactly are you paying?

  • Value-Added Tax
  • Local Franchise Tax
  • Indigenous Fuel Royalties
  • Imported Fuel Duties
  • Real Property Tax
  • Energy tax

With Federalism, embrace yourself for additional local taxes.

The DOE has yet to offer any rational polluter-pay scheme for GHG emissions. This can take the form of a carbon tax or a cap-and-trade regime. It is very likely something like this may be implemented in the future.

The RPS (Renewable Portfolio Standards) will kick off in 2020, but the DOE has stressed that this will be done in a way without additional costs to consumers. In simple terms, RPS requires DUs to have a certain mix of RE in their energy procurement. An RPS system requires a process of certification, verification, registration, tracking, a market place (REM – Renewable Energy Market) etc. Who is going to pay for the operation, administration and maintenance cost of such a platform? Expect additional costs.

Universal charges:

This is a uniquely Filipino burden. Each time you pay your electricity bill you will remember both Marcos and Fidel Ramos.

Napocor (National Power Corp) was once the most powerful govt Agency that runs the vertically integrated monopoly for the electricity industry. It accumulated massive debts from:

a. massive corruption during Marcos admin (especially the failed Bataan nuclear plant)
b. carrying out its mandate for electrification of off-grid places which often involves subsidies and costly generators like power barges.
c. buying out privately-owned power generation companies.
d. meeting it’s obligation under the ‘take-or-pay’ provisions of procurement contracts with IPPs (independent power producers)

The last ‘d’ is with complements from FVR. It is reminiscent of his ‘original sin’ in the MRT3 fiasco. In order to attract massive investments in energy infras during the power crisis of the 1990s, FVR admin entered into many sweetheart deals that contained ‘take-or-pay’ provisions. Napocor, as sole buyer of all power generated, had to pay for the contracted loads whether generated or not. In later years when the power crisis was over, Napocor had to continue paying for loads that were no longer generated.

Napocor’s debt was so huge that in 2000 it hit Php 801 billion which represented 25% of the entire national debt. The implementation of EPIRA (Electric Power Industry Reform Act 2001) brought some relief with the divestment of power plants by Napocor. However, it was still not enough to pay off all debts.

The cost of servicing of Napocor’s debts are transferred to consumers by way of the Universal charge.

FIT – Allowance:

This is a mechanism that offers incentives for RE (renewable energy) investment. The Feed-In-Tariff is used in many other countries in the world. In Singapore, we avoid feed-in tariffs. Basically, RE generation plants are paid a certain rate for the load they contribute into the grid. The cost of these incentive schemes is passed on to consumers. The moral argument is that if we want clean energy, we ought to pay for it. However, with RE, especially solar pv energy, reaching grid parity, the necessity for FIT diminishes. Furthermore, with the implementation of the Renewable Portfolio Standards, RE generators can look to the RECs (renewable energy certs) as another source of revenue.

FIT rewards the RE investors and punishes the consumers. The coal plant generators are the real CO2 emitters. They get away scott-free.

Conclusion:

Nobody is happy paying for high cost of electricity. It is easy to be emotional about it, and far too easy to play the blame game for political gains.  Atty Gadon’s recent blaming of Cory Aquino for the high electricity costs is one such example of someone who will do anything just to announce his candidature for the coming Senate election.  I wonder if Gadon reviews his electricity bills and understands what he is paying.

A national electricity system is one of the most complicated human devices. Many countries are in the process of modernizing their system from antiquated and inefficient state controlled vertically integrated monopoly to one that is open and market driven. The Philippines is no exception, It started the process of restructuring in 2001 under the framework of EPIRA. Much has been done and, in fact, we are at the tail-end of the modernization process.  I shall endeavor to write a follow-up blog on the status of the industry restructuring.
